IMO A/B/C Type Tank

Product priceContact supplier
Product informationIt is designed to insulate ship’s LPG, LEG, LNG water tanks and can be applied to DECK TANK due to high environmental effect resistance.
TAG#superior insulation performance #Easy construction #Easy maintenance and repair # Spray foam #IMO A/C TYPE
Download related information
General spec.

Contact Supplier

Contacts

박재진
+82-51-200-4634
jaejinpark@idongsung.com

Contact supplier

Related Products

PIPE-INSULATION_1

PIPE Insulation for LNGC : PIPE INSULATION

Essentially required Insulation System for liquidified gas shipping vessel for the purpose of prevention of vaporization of cargo by heat transfer, prevention of ultra-low (high) temperature transmission to hull structure, and prevention of personal injury caused by contact by thermal/cold insulating cargo handling pipe of LNG, LPG, LEG vessels.
VESSEL-1

ON/OFF SHORE INSULATION

Insulation system of process equipment in offshore and onshore plants According to the equipment's operating temperature, ultra-low(high) temperature insulation selection, The details of insulation thickness, layering, jacket and part materials etc., and installation method is determined depending on the characteristics of the insulation to proceed with equipment insulation.

Product Info

Business Field Market Manufacturer Department
Shipbuilding/Marine Equipment Dongsung FineTec Technical Team

Product Description

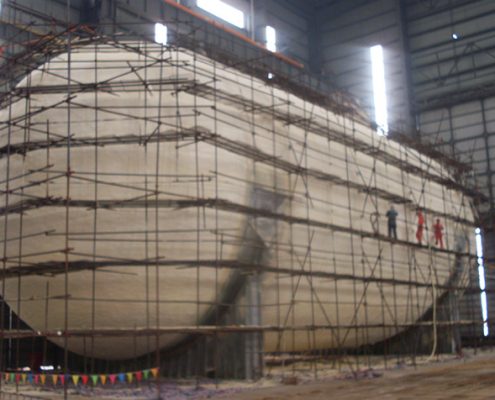

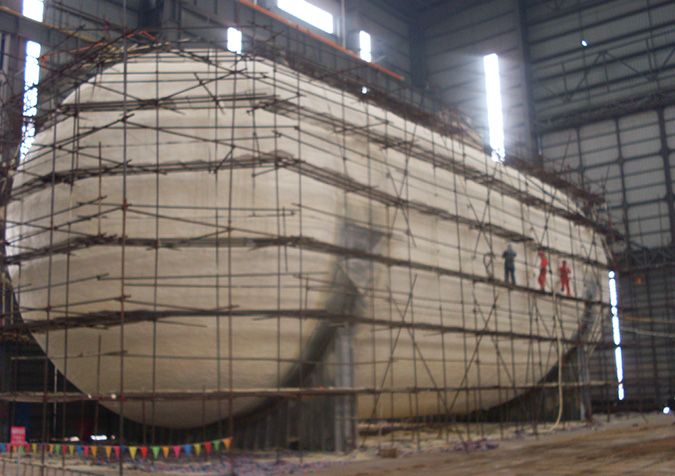

Insulation System of PUF SPRAY type applicable to LPG/LEG/LNG liquidified cargi tank

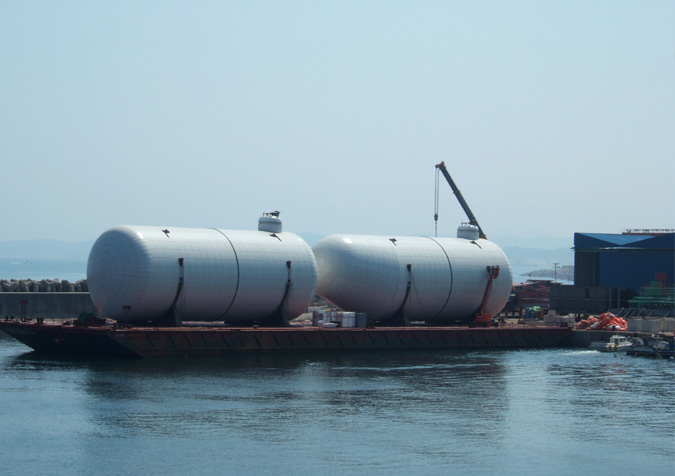

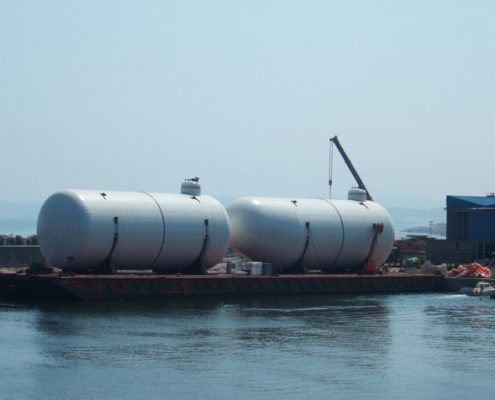

Applicable to DECK TANK due to high environmental effect resistance

Construction is easy, and easy maintenance and repair

Relatively short construction period saves costs

Fp140-40

Properties Unit Allowance Test Method
Sprayed density kg/m³ 36 – 50 ASTM D1622
Compressive strength kg/cm² ≥ 1.7 ASTM D1621
Tensile strength kg/cm² ≥ 2.0 ISO 1926:2009
Thermal conductivity at 20°C W/mK ≤ 0.021 ASTM C518
at 20°C aged 4 month W/mK ≤ 0.023 ASTM C518
Dimensional stability vol% ≤ 1 ASTM 2126
Closed cell content % ≥ 90 ASTM D6226
Water absorption g/100cm² ≤ 3.0 KS M 3809
Flammability – B2 DIN 4102, Part 1

Fp140-60

Properties Unit Allowance Test Method
Sprayed density kg/m³ 50 – 56 ASTM D1622
Compressive strength kg/cm² ≥ 2.5 ASTM D1621
Tensile strength kg/cm² ≥ 2.8 ISO 1926:2009
Thermal conductivity at 20°C W/mK ≤ 0.022 ASTM C518
at 20°C aged 4 month W/mK ≤ 0.023 ASTM C518
Dimensional stability vol% ≤ 1 ASTM 2126
Closed cell content % ≥ 90 ASTM D6226
Water absorption g/100cm² ≤ 4.0 KS M 3809
Flammability – B2 DIN 4102, Part 1
