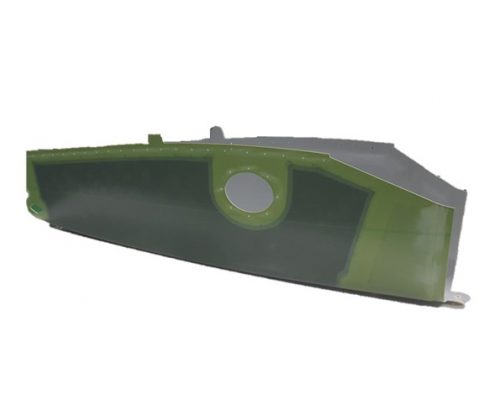

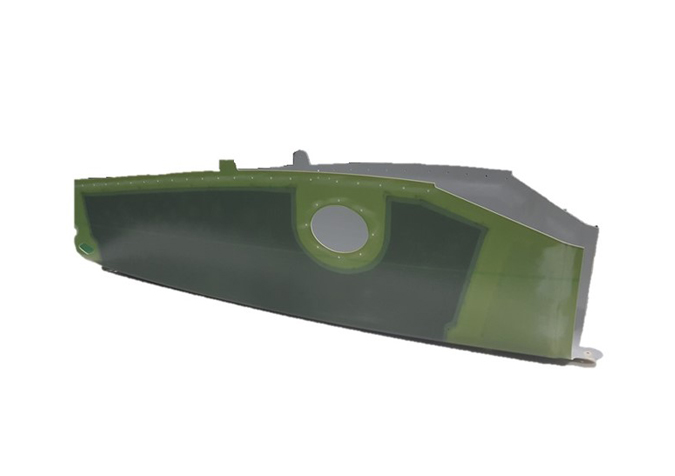

Boeing 737FSF (Flap Support Fairing)

Product priceConsultation required
Product informationWing structure that reduces the drag generated when it is mounted and operated on Boeing 737 model.
TAG#Composite #Fairing #Autocalve
Download related informationPackaging & Shipping

Contact Supplier

Contacts

박형국 부장
055-340-7546
parkhk@idongsung.com

Contact supplier

Related Products

A350CD-2

Airbus 350 CD

The main wing tip is designed as L-shaped to reduce air resistance and improve fuel efficiency

Product Info

Business Field Market Manufacturer Department
aircraft composite material Structure Aviation/composite material Dongsung TCS Aviation HQ

Product Description

FSF(Flap Support Fairing) : Streamlined cover to protect flap Structure.

* Flap : high lifting device that allows takeoff even on short runways

Cure Temperature 126˚C(260˚F)
Process Specification BAC5317-2
Material Spec Honeycomb Core BMS8-124, TY 6, CL-4, GR-3.0
Adhesive Film BMS5-129, TY2, CL 1A, GR 5
CFRP Fabric BMS8-168, TYPE 2, CL2
GFRP Fabric BMS8-79, CL 4, GR-A, STYLE 220

Packing & Delivery

Application

  • Aircraft wing
